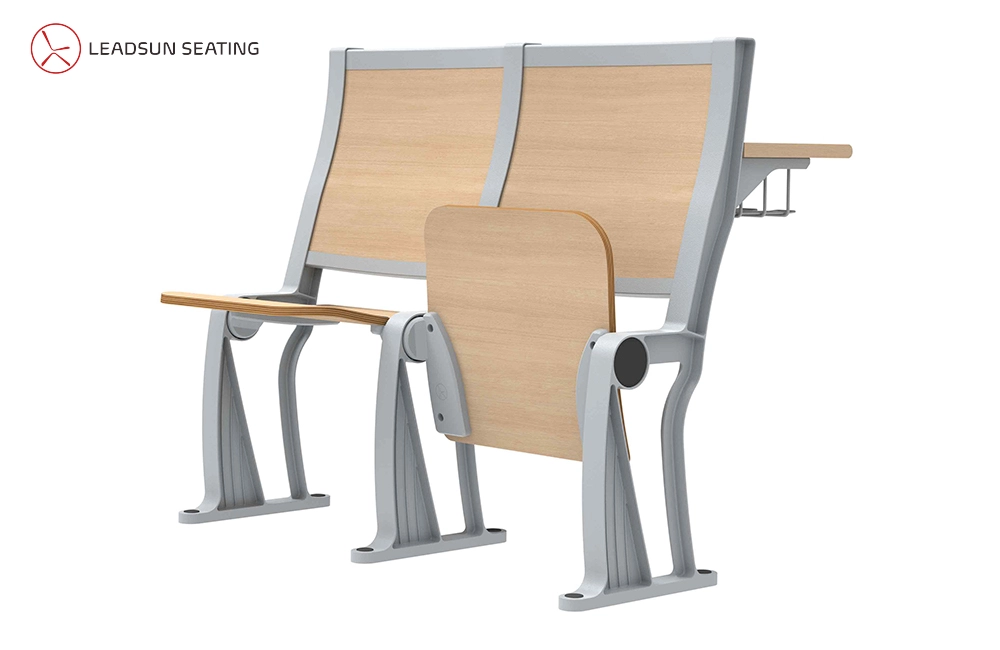

Product Overview

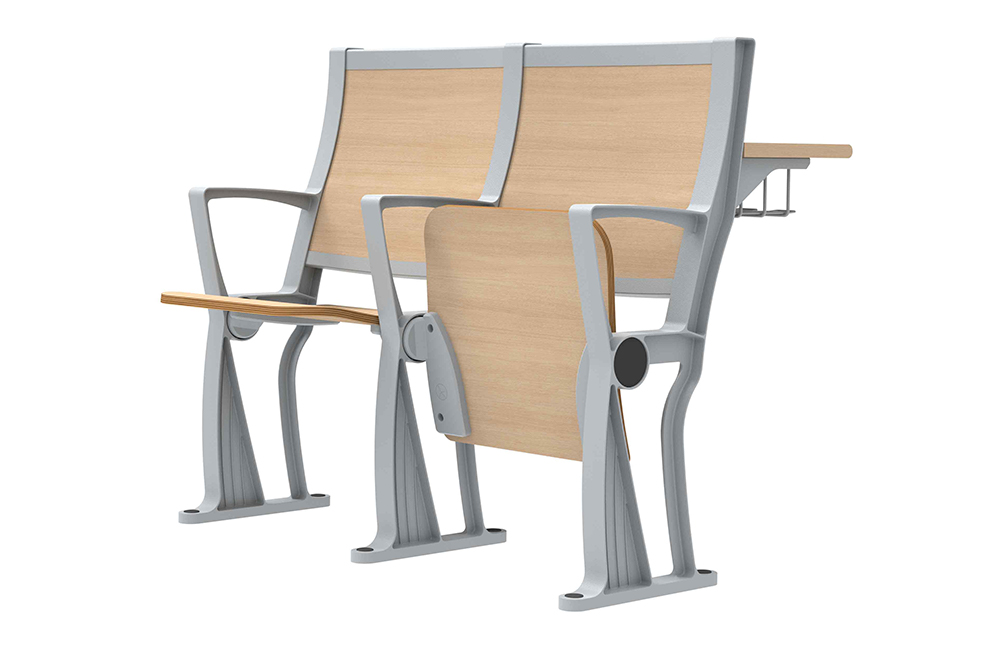

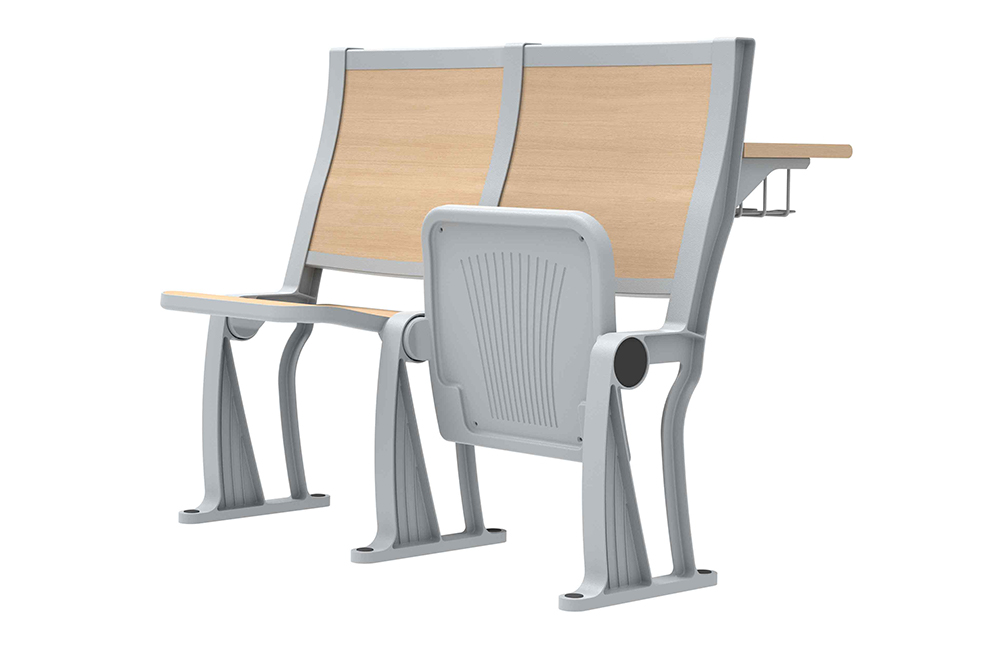

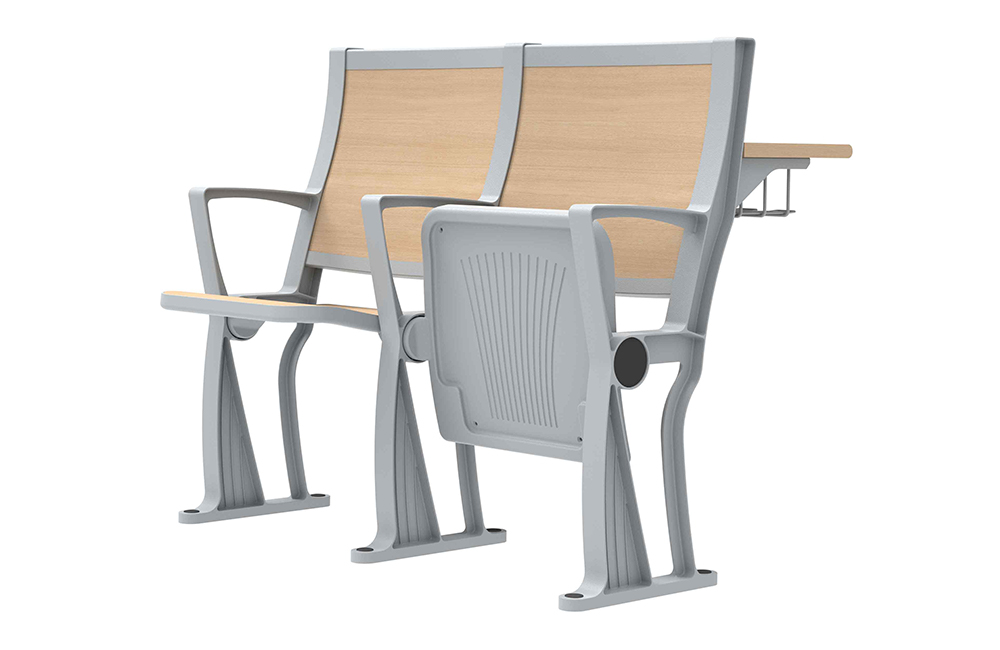

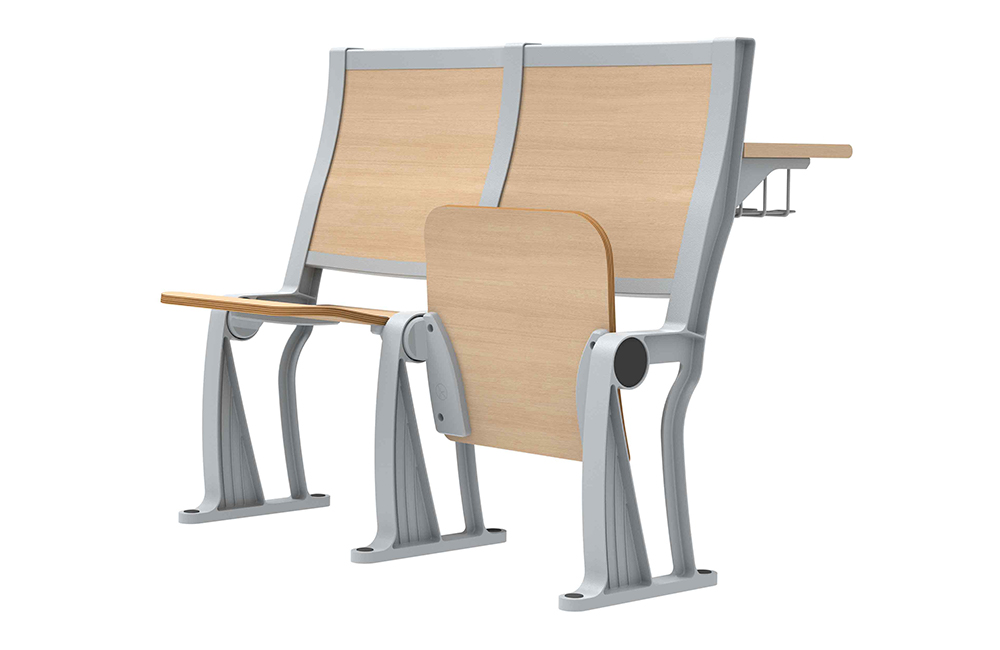

The LS-927 Series Fixed University Seating by Leadsun Seating is engineered for academic durability and ergonomic excellence. Designed for tiered classrooms, lecture halls, and training centers, this fixed installation system features die-cast aluminum legs, 3D-curved fire-resistant wood panels, and a gravity reclining mechanism. Certified to ISO standards and backed by a 3-year structural warranty, it seamlessly blends industrial strength with user-centric design.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | LS-927 Series |
| Seat Dimensions | 421mm×441mm×12mm (Seat) |
| Tabletop Height | Adjustable (750–900mm) |
| Material | Die-Cast Aluminum, Fire-Resistant Wood Panels, Powder-Coated Steel |
| Certifications | ISO 9001, GB/T 3324-2017 |
| Warranty | 3-Year Structural Warranty, Lifetime Support |
Key Features
✅ 3D Ergonomic Backrest
• 10mm molded multilayer board with fireproof laminate
• Horizontal and vertical curvature for spinal alignment
• Available in multiple colors
✅ Gravity-Activated Flip-Up Seat
• Maintenance-free mechanism embedded in aluminum frame
• 12mm thick fireproof multilayer board seat (421×441mm)
• Reinforced with 13 underside ribs for 330 lbs. capacity
✅ Heavy-Duty Aluminum Legs
• Die-cast ADC12 aluminum legs (388×50×930mm)
• Triple reinforcement ribs (5mm width) and 310mm bolt pattern
• Powder-coated finish with safety caps
✅ Adjustable Desktop
• 350×25mm particleboard with fireproof laminate
• Tool-free height adjustment (750–900mm)
• Injection-molded edges for waterproofing
✅ Safety & Compliance
• Full-enclosed floor anchors (ASTM F1858-15 compliant)
• Steel wire book net (5mm main frame + 3mm mesh)
Core Features
1. 3D-Curved Ergonomic Backrest
-
Design: 10mm multilayer wood veneer with fireproof laminate, molded into a 3D曲面 for lumbar support.
-
Comfort: Horizontal/vertical curvature adapts to natural spine alignment.

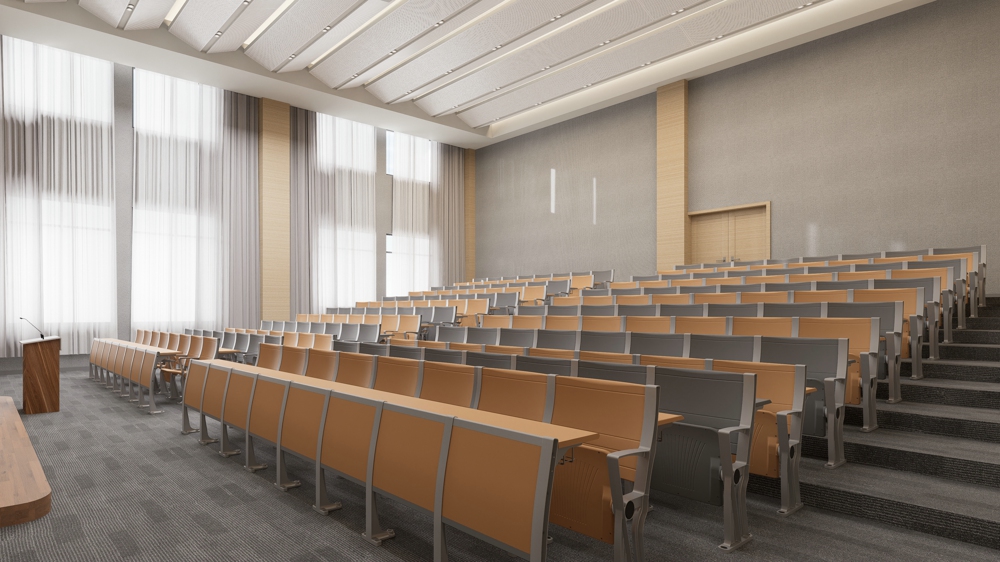

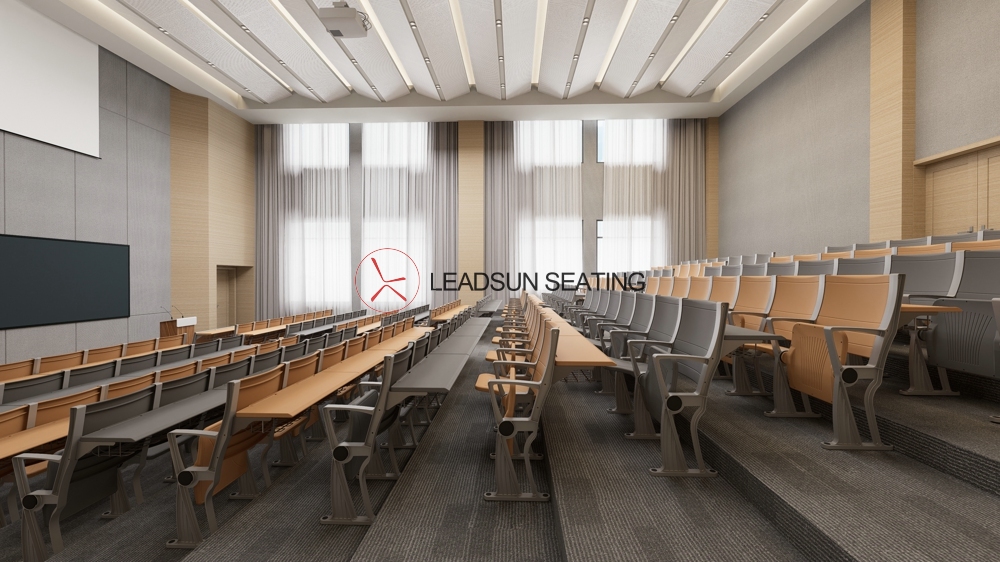

Image: LS-927 in a Tiered University Classroom
2. Die-Cast Aluminum Legs
-
Construction: Single-unit die-cast legs (930mm height, 50mm width), reinforced with triple 5mm ribs for stability.
-
Installation: Concealed screws with 310mm孔距, anti-slip PP caps for secure floor anchoring.
3. Gravity Reclining Mechanism
-
Function: Silent, maintenance-free reclining system embedded within the seat frame.
-
Safety: The anti-pinch design ensures user safety.
Why Choose the LS-927 Series?
1️⃣ Industrial-Grade Durability
-
• Die-cast aluminum legs and steel-reinforced components withstand heavy daily use.
2️⃣ Ergonomic Compliance
-
• 3D backrest curvature reduces fatigue during long lectures (ANSI/BIFMA X5.1 certified).
3️⃣ Easy Installation
-
• Pre-drilled mounting points with universal 310mm bolt spacing.
4️⃣ Custom Configurations
-
• Available in 2–12-seat continuous rows.
5️⃣ Global Safety Standards
-
• Fireproof surfaces, rounded edges, and anti-slip foot covers.
Applications
-
Education: University lecture halls, STEM labs, training rooms.
-
Public Venues: Auditoriums, conference centers, libraries.
-

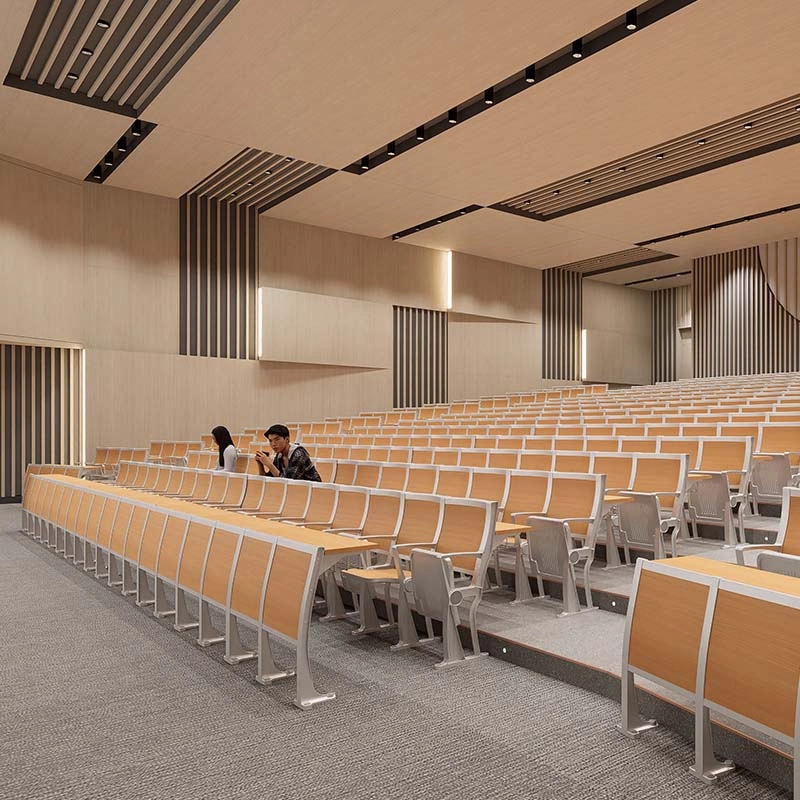

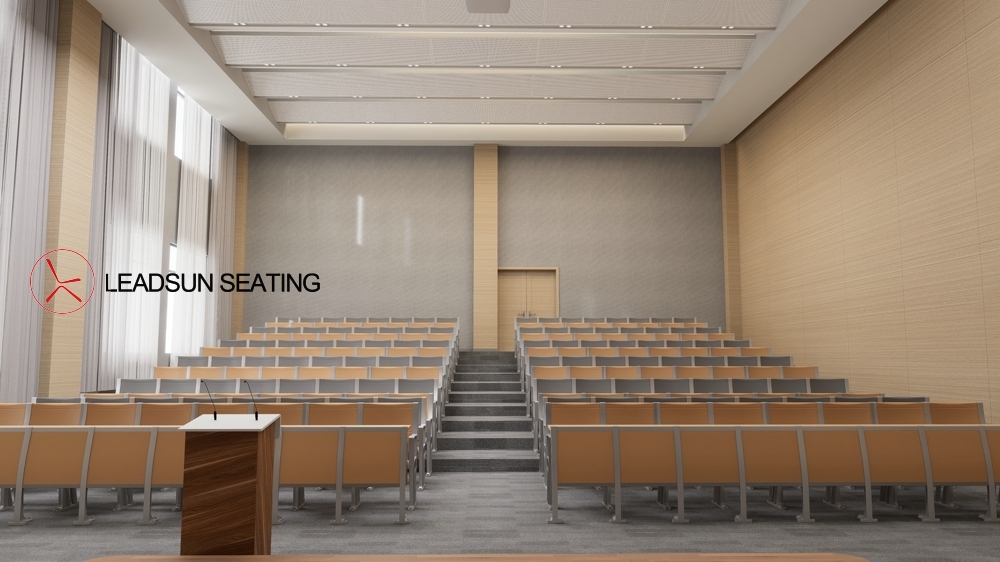

Installation Preview
-
